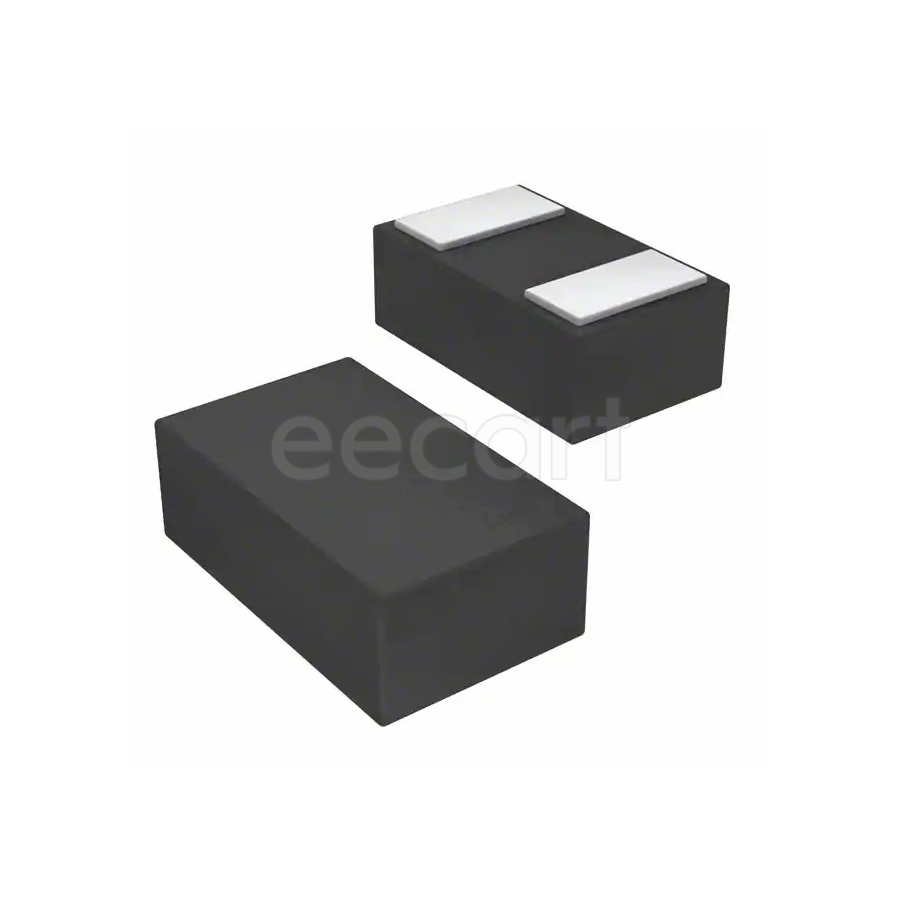

TPD1E04U04DPLT
Manufacturer:
Texas Instruments
Mfr.Part #:
TPD1E04U04DPLT
Datasheet:
Description:
TVS Diodes X2SON-2 SMD/SMT Working Voltage:3.6 V Breakdown Voltage:4.5 V Clamping Voltage:8.9 V Peak Pulse Power:16 W Polarity:Unidirectional
| Parameter | Value |
|---|---|
| Length | 600 µm |
| Width | 300 µm |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 2 |
| Height | 320 µm |
| Packaging | Reel |
| Thickness | 0.3 mm |
| Lead Free | Lead Free |
| REACH SVHC | No SVHC |
| Interface | HDMI, USB |
| Operating Supply Voltage | 3.6 V |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Number of Channels | 1 |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 1 week ago) |
| Clamping Voltage | 8.9 V |
| Polarity | Unidirectional |
| Voltage ESD Contact | 16 kV |
| Voltage ESD Air Gap | 16 kV |
| Working Voltage | 3.6 V |
| Diode Capacitance | 0.65 pF |
| Breakdown Voltage | 4.5 V |
| Peak Pulse Current | 16 A |
| Peak Pulse Power | 16 W |
| RoHS | Compliant |
Stock: 790
Distributors
pcbx
pcbxUnit Price$0.73182
Ext.Price$0.73182
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.73182 | $0.73182 |
| 10 | $0.51553 | $5.15530 |
| 25 | $0.40712 | $10.17800 |
| 50 | $0.32151 | $16.07550 |
| 100 | $0.25391 | $25.39100 |
| 300 | $0.23249 | $69.74700 |
| 500 | $0.21287 | $106.43500 |
| 1000 | $0.21031 | $210.31000 |
